Specifiche Tecniche:
Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
- Rugged diecast shell for best reliability.
Product

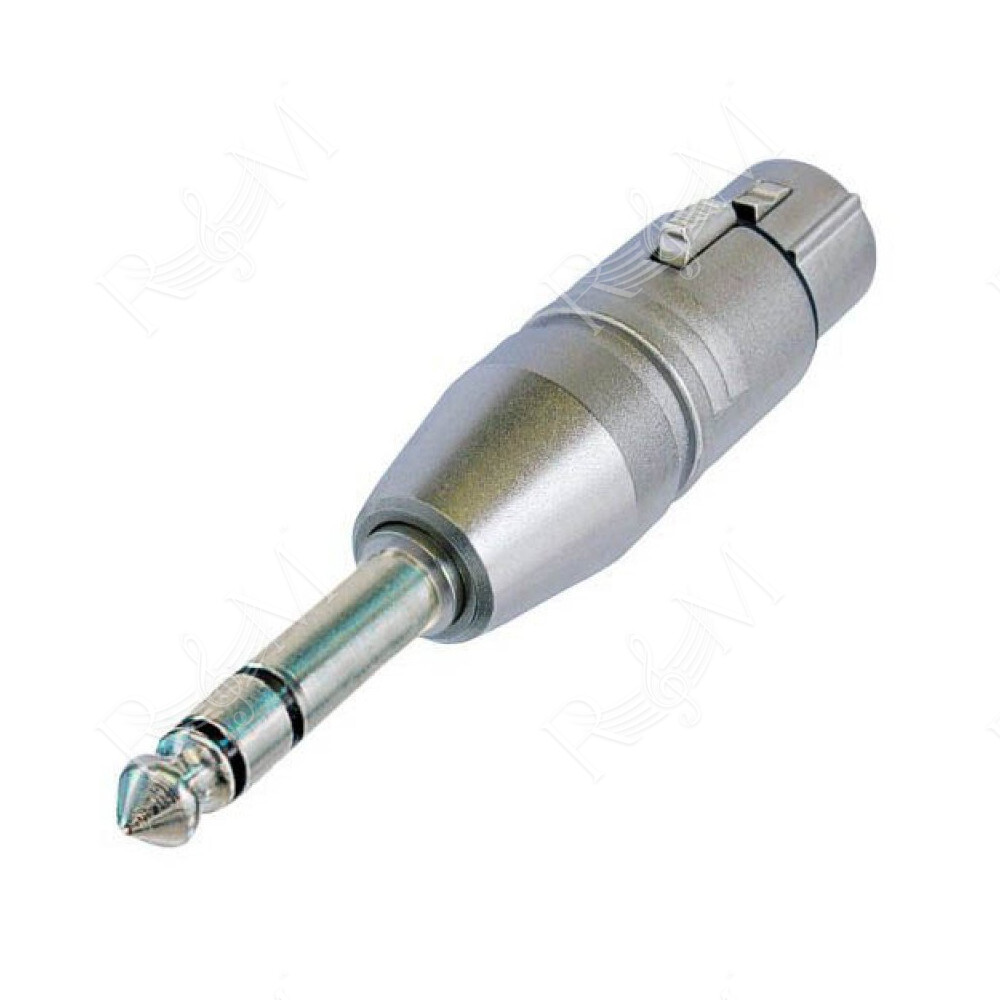

- Title NA3FP
- Connection Type Adapter
- XLR-3F to 1/4" stereo jack
Electrical
- Contact resistance ≤ 3 m ohm (XLR)
- Contact resistance ≤ 6 mohm
- Dielectric strength 1.5 kV dc / > 1 kVDC (XLR/Plug)
- Insulation resistance > 2 Gohm
Mechanical
- Wiresize
- Locking device Latch lock
Material
- Contact plating 2 µm Ag over 2 µm Ni
- Contacts Brass (CuZn39Pb3) (plug)
- Insert Polyamide (PA 6.6 30 % GR)
- Shell Zinc diecast (ZnAl4Cu1)
- Shell plating gal Cu/Ni
Environmental
- Temperature range -20 °C to +65 °C
