Specifiche Tecniche:
Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the XX Series
- Rugged diecast shell for best reliability
Product

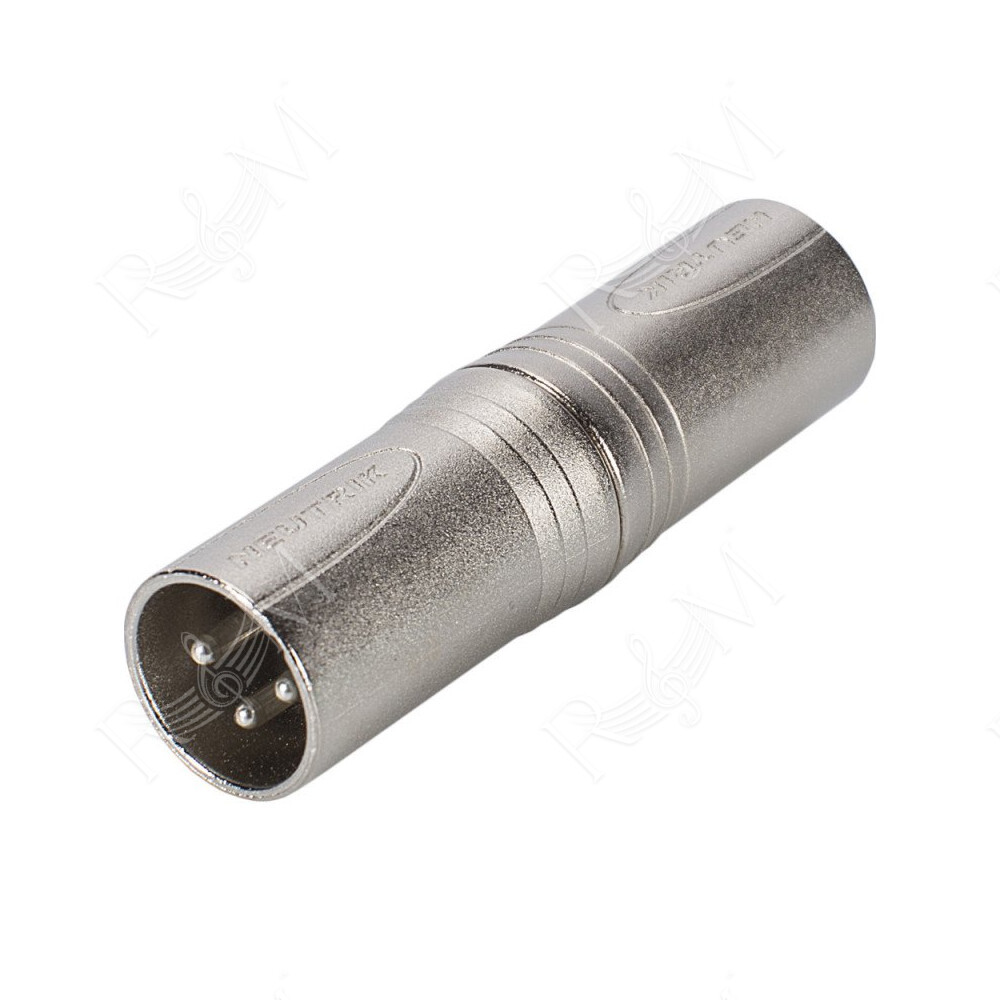

- Title NA3MM
- Connection Type Adapter
- XLR-3M to XLR-3M
Electrical
- Contact resistance ≤ 3 mohm
- Dielectric strength 1,5 kVDC
- Insulation resistance > 2 Gohm
Mechanical
- Wiresize
- Locking device Latch lock
Material
- Contact plating 2 µm Ag
- Contacts Brass (CuZn39Pb3)
- Insert Polyamide (PA 6.6 30 % GR)
- Shell Zinc diecast (ZnAl4Cu1)
- Shell plating gal Cu/Ni
Environmental
- Temperature range -20 °C to +65 °C
