Specifiche Tecniche:
Product

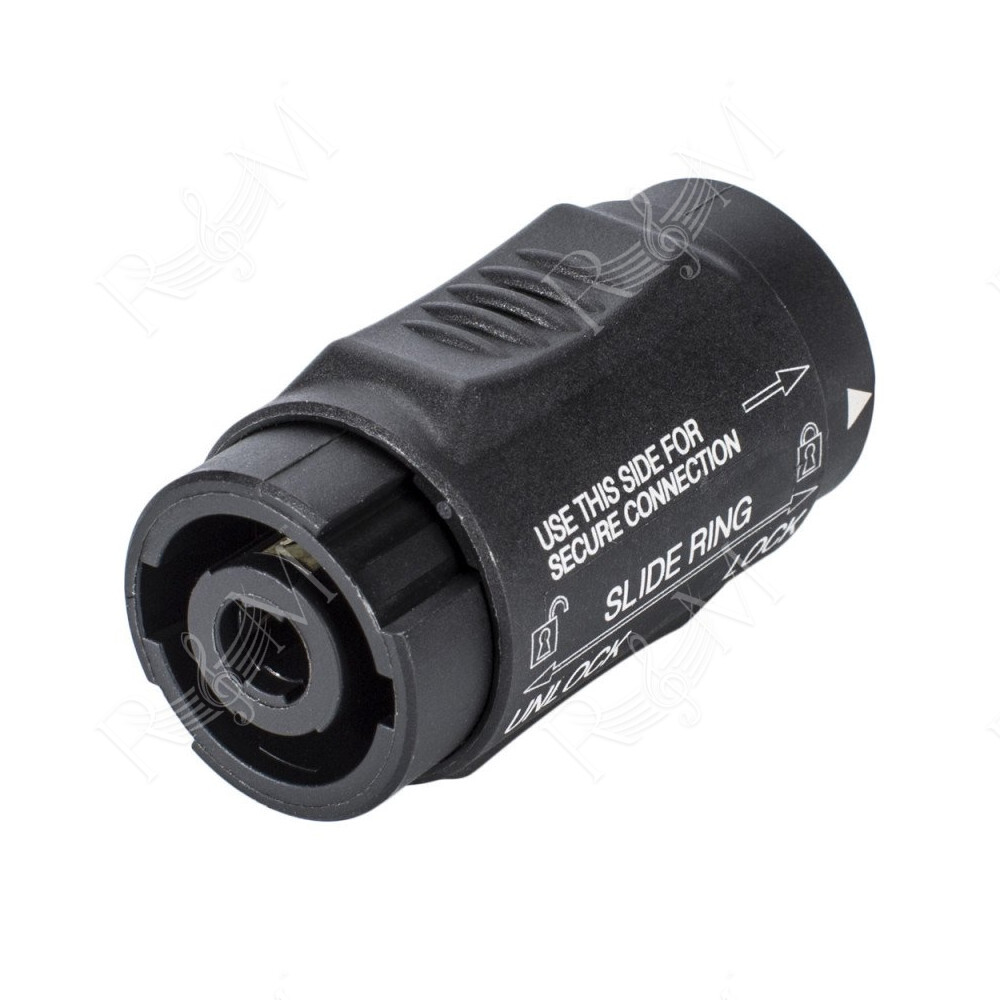

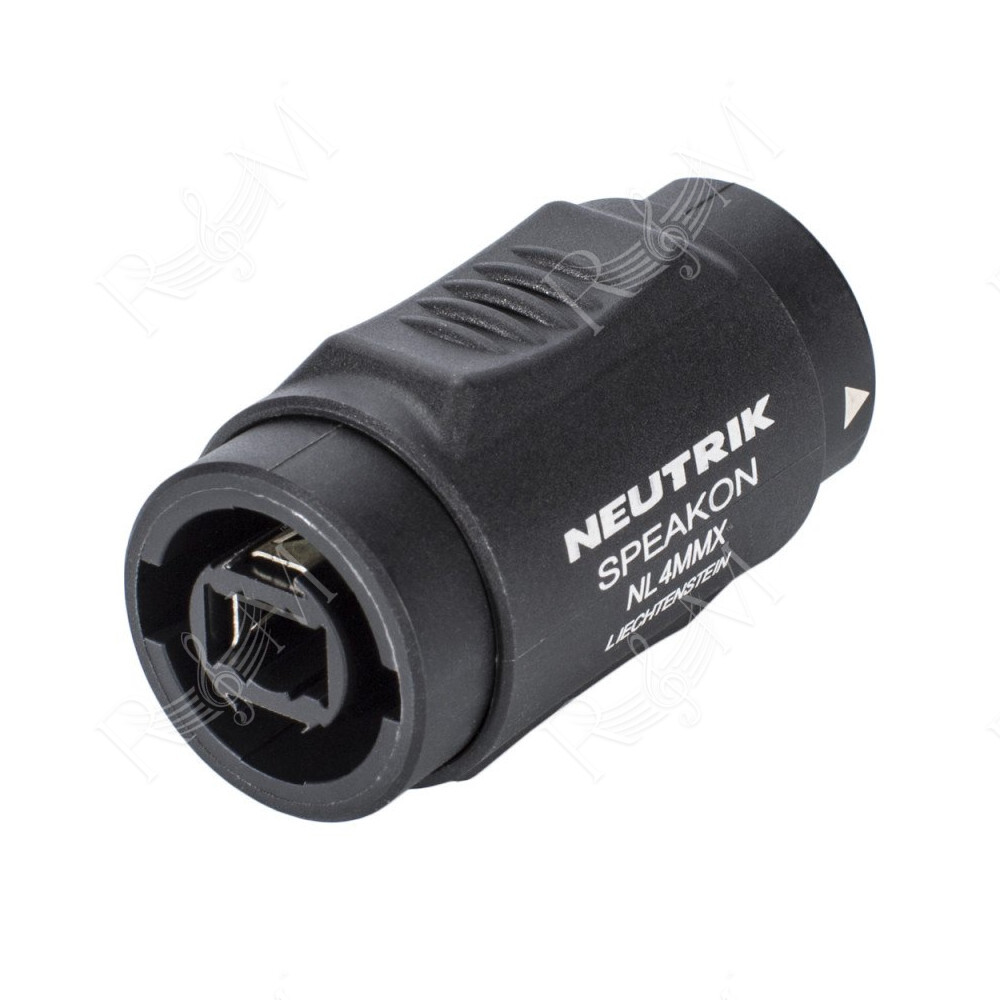

- Title NL4MMX
- Gender male
Electrical
- Contact resistance ≤ 3 m ohm (after lifetime)
- Dielectric strength 4 kVDC (peak)
- Insulation resistance > 1 Gohm (after dampheat)
- Rated current per contact 15 A rms continuous
- Rated current per contact 30 A audiosignal, duty cycle 50 %
- Rated voltage 250 V (Insulation)
- Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
- Lifetime > 5000 mating cycles
- Wiresize
- Locking device Quick Lock
Material
- Contact plating 4 µm Ag
- Contacts Bronze (CuSn6)
- Insert Polyamide (PA 6 30 % GR)
- Shell Polyamide (PA 6 30 % GR)
Environmental
- Flammability UL 94 HB
- Solderability Complies with IEC 68-2-20
- Temperature range -30 °C to +80 °C
