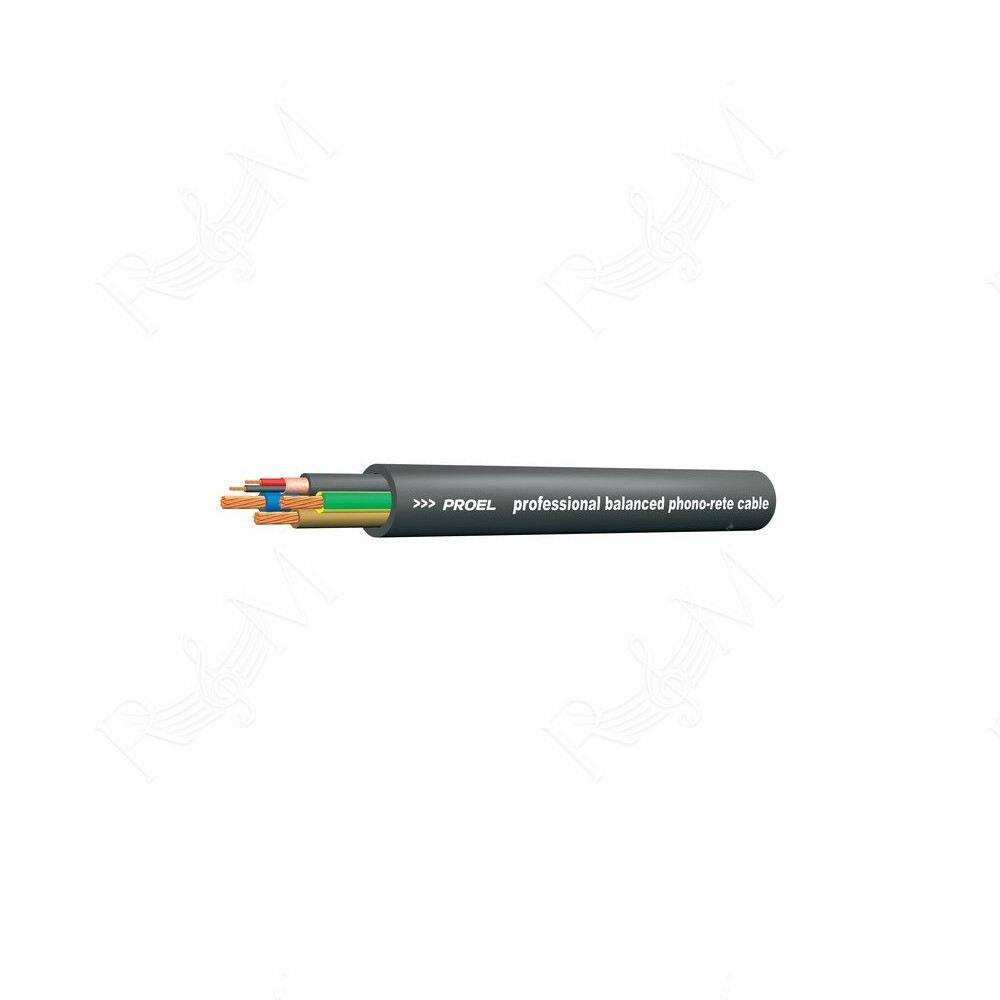

Cavo professionale combinato di tipo audio + alimentazione. Composto da una coppia audio bilanciata, twistata e individualmente isolata + cavo di alimentazione elettrica monofase. Guaina esterna in PVC flessibile antifiamma. Modelli disponibili: HPC501 - Audio 2 x 0.35 mm2 + Power 3 x 1.50 mm2 / HPC502 - Audio 2 x 0.35 mm2 - Power 3 x 2.50 mm2. Colore nero. Bobina in legno 100 m.
- Application fields: Audio connections
- Conductors: Bare copper
- Power: 16 AWG = 3x29x0.25 mm (1,5 mm2)
- Signal: 22 AWG = 2x11x0.20 mm (0.35 mm2)
- Insulation:
- Power: PVC 60 shore Ø 3.0 mm
- Signal: PVC HT105 Ø 1.50 mm
- Shield: Spiral red copper 4x16x0.12 90%
- Jacket: Flexible PVC 60 shore Ø 10.80 mm - Complying with CEI 20-35 (IEC 332.1)regulations
- Color: Black
- Electrical resistance: 12 Ohm/Km @ 20°C (Power) / 54.5 Ohm/Km @ 20°C (Signal)
- Electrical capacitance: 124 pF/m (signal) @ 1 KHz
- Operating temperature: -10°C / +60°C
- Working tension:
- Power: 300/500 V
- Signal: < 50 V AC / < 75 V DC
- Weight: 182 Kg/Km
- Minumum bending radius: 10 x cable section radius
- Packaging: 100 m wooden or wood fiber reel
