Specifiche Tecniche:
Technical characteristics
|
Impedance |
120 ohm |
|
Cores / section |
2 / 0.22 nr. x mm2 |
|
Peak operating voltage |
49 VAC / 110 VDC |
|
Voltage rating Uo/U |
300 / 300 V |
|
Test voltage |
2000 V |
|
Insulation resistance |
> 20 Mohm/km |
|
Temperature range for fixed installations |
- 15 to 70 °C |
|
Minimum bending radius for fixed installations |
10 x diameter |
|

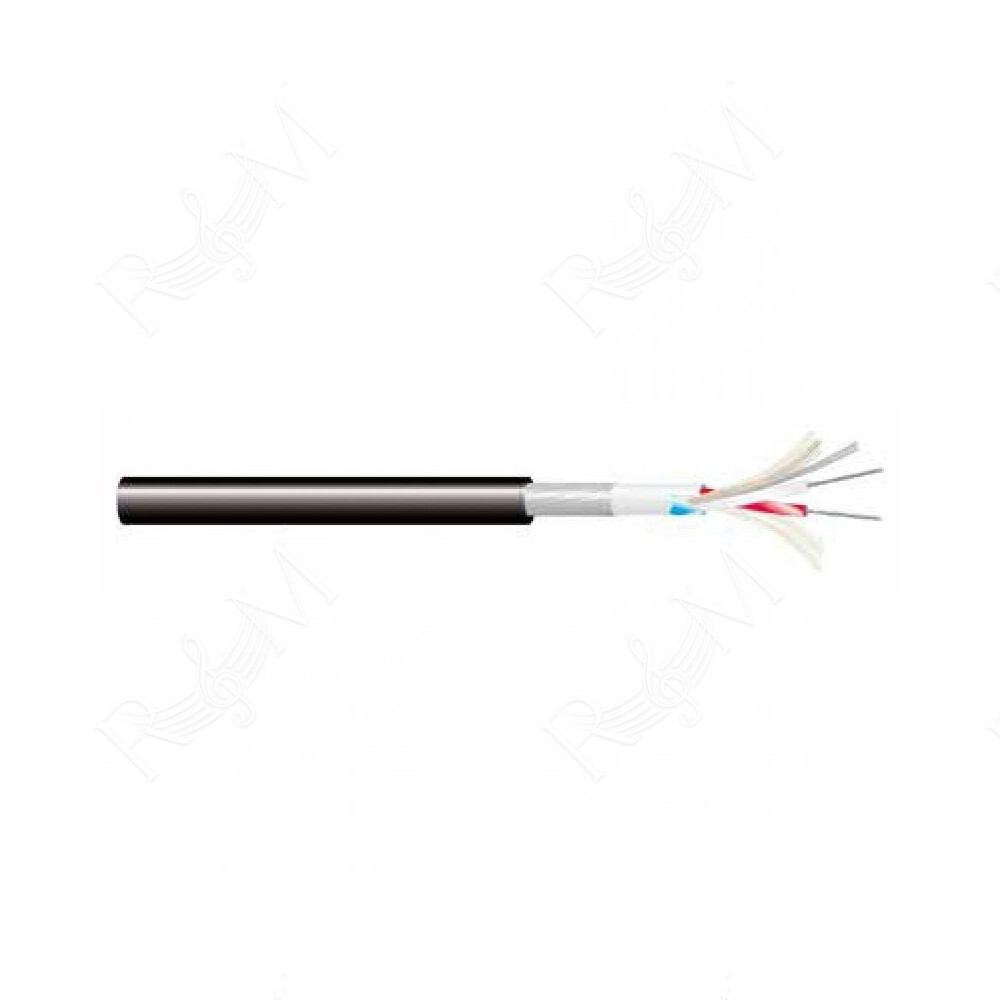

Conductor Material Type Construction |
tinned copper (TC) stranded 7 x 0,20 (n x mm) |
|
Insulation Material Cores identification Diameter Inner conductor resistance |
foam Polyethylene (PEE) white - red 1.50 ±0,05 mm 91 ohm/km |
|
Filler Material |
anti-crushing cotton |
|
1st shield Material Type Coverage |
aluminum / PET foil 9/12 100% |
|
2st shield Material Type Coverage |
tinned copper (TC) spiral 87% |
|
Drain wire Material Construction |
tinned copper (TC) 7 x 0.20 |
|
Jacket Material Hardness Color Diameter |
Polyvinylchloride (PVC) TM2 (YM2) 64 shore black RAL 9005 5.20 ±0.10 mm |
