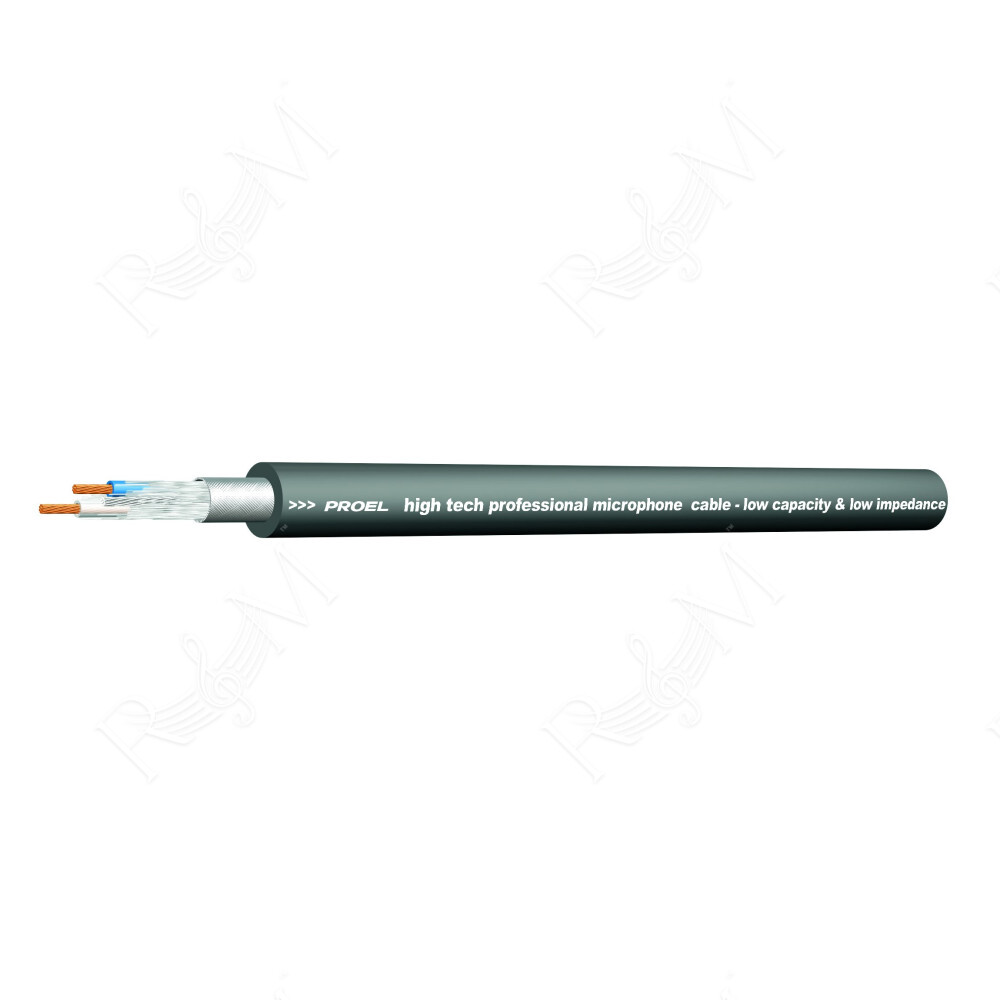

Cavo bilanciato “high quality” - per microfono con guaina esterna flessibile - O.F.C. (Oxygen Free Copper - Sezione 2 x 0,34 mm2).
- Application fields: Installations / Recording studios / Microphone connections
- Conductors: Bare copper 22 AWG = 43 x 0.10 mm (0.34 mm2)
- Insulation: PE Ø 1.50 mm
- Shield: Tinned copper braid / 95%
- Jacket: Super Flexible PVC 70 shore Ø 6.50 mm
- Drain wire: Tinned copper 24 AWG = 7 x 0.15 mm (0.22 mm2)
- Color: Black
- Electrical resistance:
- 56 Ohm/Km (conductor) @ 20°C
- 16 Ohm/Km (shield) @ 20°C
- Electrical capacitance: 40 pF/m (conductor/ conductor) @ 1 KHz
- Velocity of propagation: 66 %
- Impedance: 110 Ohm
- Operating temperature: -20°C / +70°C
- Working tension:
- < 50 V AC
- < 75 V DC
- Weight: 57 Kg/Km
- Minumum bending radius: 15 x cable section radius
- Packaging: 100 m carton reel
