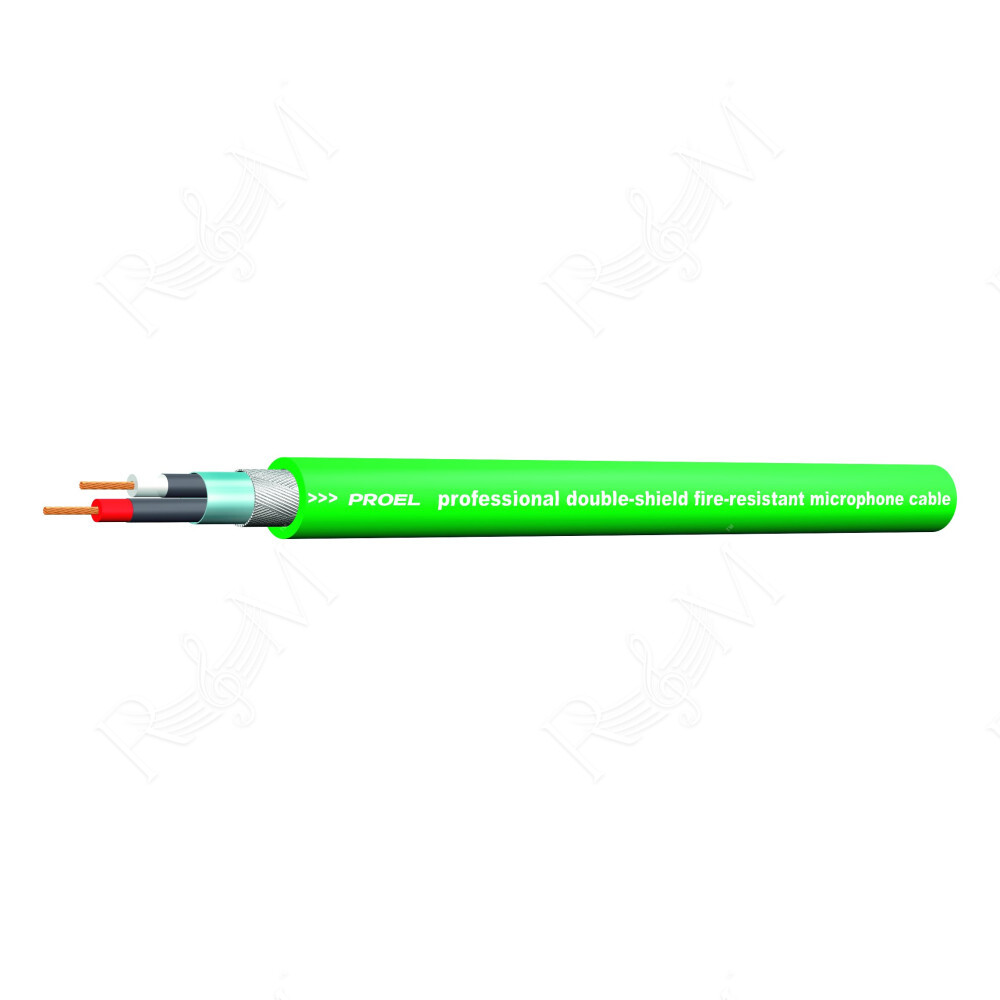

Cavo bilanciato per microfono con guaina esterna flessibile antifiamma particolarmente indicato per installazioni fisse. - O.F.C. (Oxygen Free Copper) - Sezione 2 x 0.34 mm2. Colore verde RAL6017. Bobina in legno da 300 m.
- Application fields: Installation / Recording studios / Microphone connections
- Conductors: Bare copper 22 AWG = 19 x 0.15 mm (0.34 mm2)
- Insulation: XLPE Ø 1.60 mm natural/red
- Shield: Aluminium foil 100% / Tinned copper braid 90%
- Jacket: Flexible fl ame resistant PVC Ø 5.60 mm / Complying with IEC 332.2 regulations
- Color: Green RAL6017
- Electrical resistance:< 62 Ohm/Km (conductor) @ 20°C
- Electrical capacitance:
- 50 pF/m (conductor/conductor) @ 1 KHz
- 87 pF/m (conductor/shield) @ 1 KHz
- Nominal impedance: 110 Ohm
- Attenuation:
- 1 MHz = 1.60 dB/100 m
- 3 MHz = 2.80 dB/100 m
- 6 MHz = 4.00 dB/100 m
- 8 MHz = 4.60 dB/100 m
- 10 MHz = 5.10 dB/100 m
- Velocity of propagation: 66 %
- Operating temperature: -20°C / +80°C
- Working tension:
- < 50 V AC
- < 75 V DC
- Weight: 44 Kg/Km
- Minumum bending radius: 30 mm
- Packaging: 300 m wooden reel (HPC210FR300)
