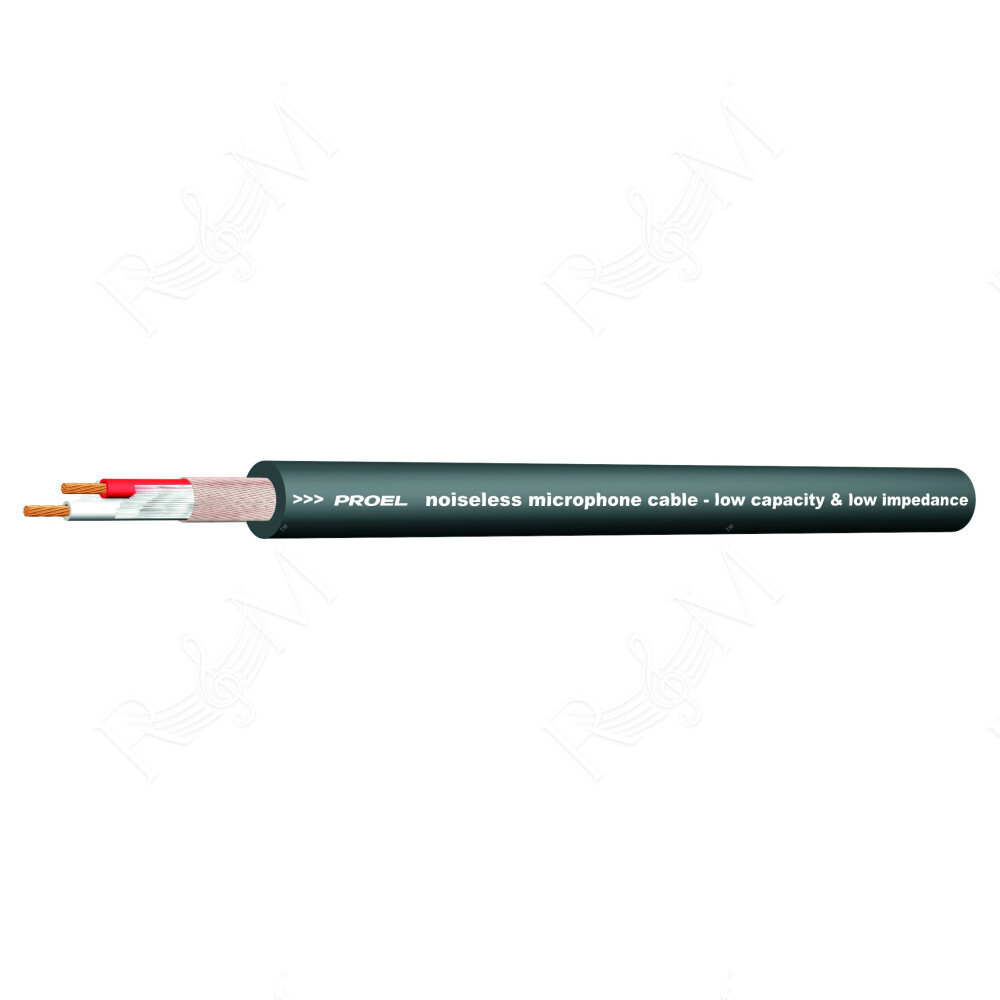

Cavo bilanciato per microfono con guaina esterna flessibile non propagante la fiamma - LSZH - idoneo per collegamenti microfonici, impianti audio, sale di registrazione, sistemi HI-FI per auto e domestici. - O.F.C. (Oxygen Free Copper) - Sezione 2 x 0.25 mm2.
- Application fields: Installation / Recording studios / Microphone connections
- Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.25 mm2)
- Insulation: LDPE Ø 1.60 mm natural/red
- Shield: Spiral bare copper > 70%
- Jacket: Flame and fire retardant thermoplastic material LSZH - Hardness 45 shore Ø 6.30 mm
- Color: Black
- Electrical capacitance:
- 45 pF/m (conductor/conductor) @ 1 KHz
- 100 pF/m (conductor/shield) @ 1 KHz
- Velocity of propagation: 80 %
- Operating temperature: -20°C / +70°C
- Working tension:
- < 50 V AC
- < 75 V DC
- Weight: 46 Kg/Km
- Minumum bending radius: 20 x cable section radius
- Packaging: 100 m carton reel
- Packaging: 300 m wooden reel (HPC210HFR300)
