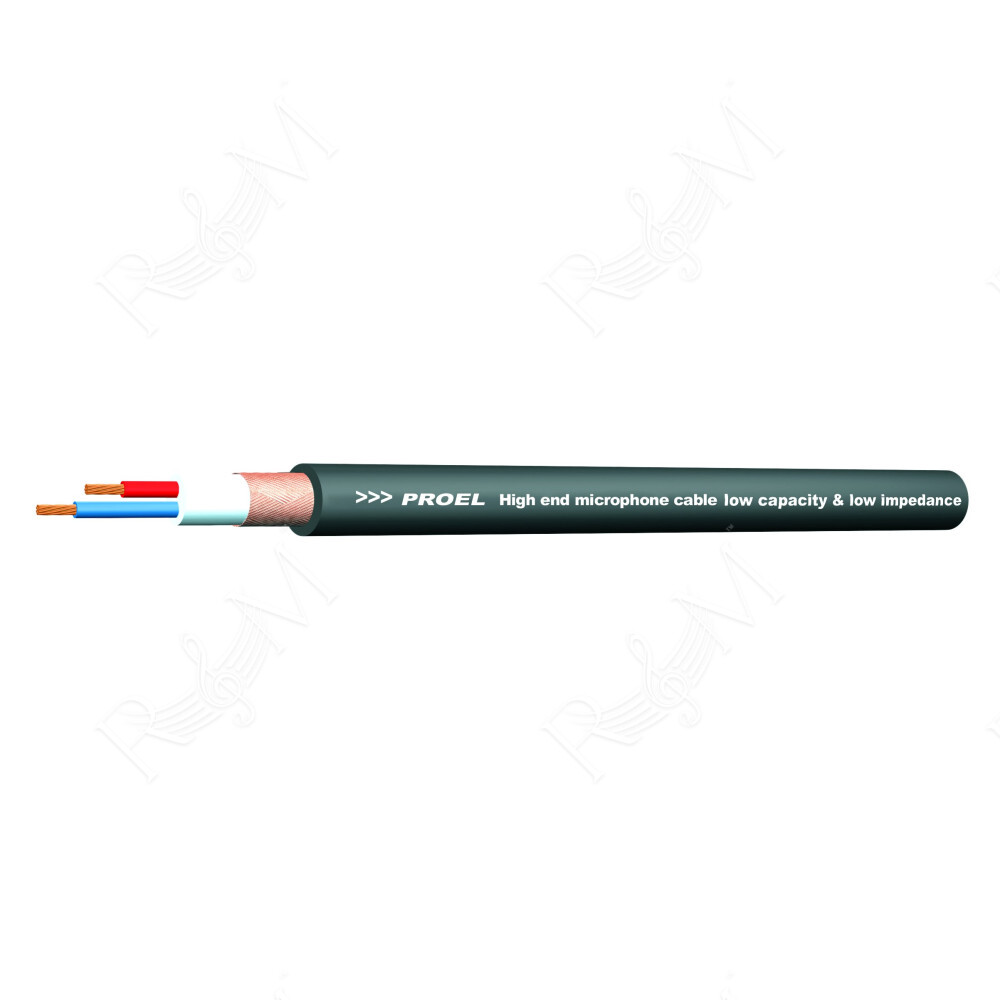

Cavo bilanciato “high-end” professionale per microfono con guaina esterna flessibile - O.F.C. (Oxygen Free Copper) - Sezione 2 x 0,50 mm2).
- Application fields: Installations / Recording studios / Professional Stage Connections / Microphone connections
- Conductors: Bare copper 20 AWG = 26 x 0.15 mm (0.50 mm2)
- Insulation: LDPE Ø 1.40 mm - PVC Ø 3,60 mm
- Shield: Bare copper braid / 24*7*0,10 - 90%
- Jacket: PVC TM2 complying with EN 50363-4-1 hardness 63± 2 Sh-A - Ø 7.00 mm
- Color: Black
- Electrical resistance:
- 39 Ohm/Km (conductor) @ 20°C
- 16 Ohm/Km (shield) @ 20°C
- Electrical capacitance:
- 55 pF/m (conductor / conductor) @ 1 KHz
- 120 pF/m (conductor / screen) @ 1 KHz
- Velocity of propagation: 66 %
- Operating temperature: -20°C / +70°C
- Working tension:
- < 50 V AC
- < 75 V DC
- Weight: 57 Kg/Km
- Minumum bending radius: 15 x cable section radius
- Packaging: 100 m carton reel
