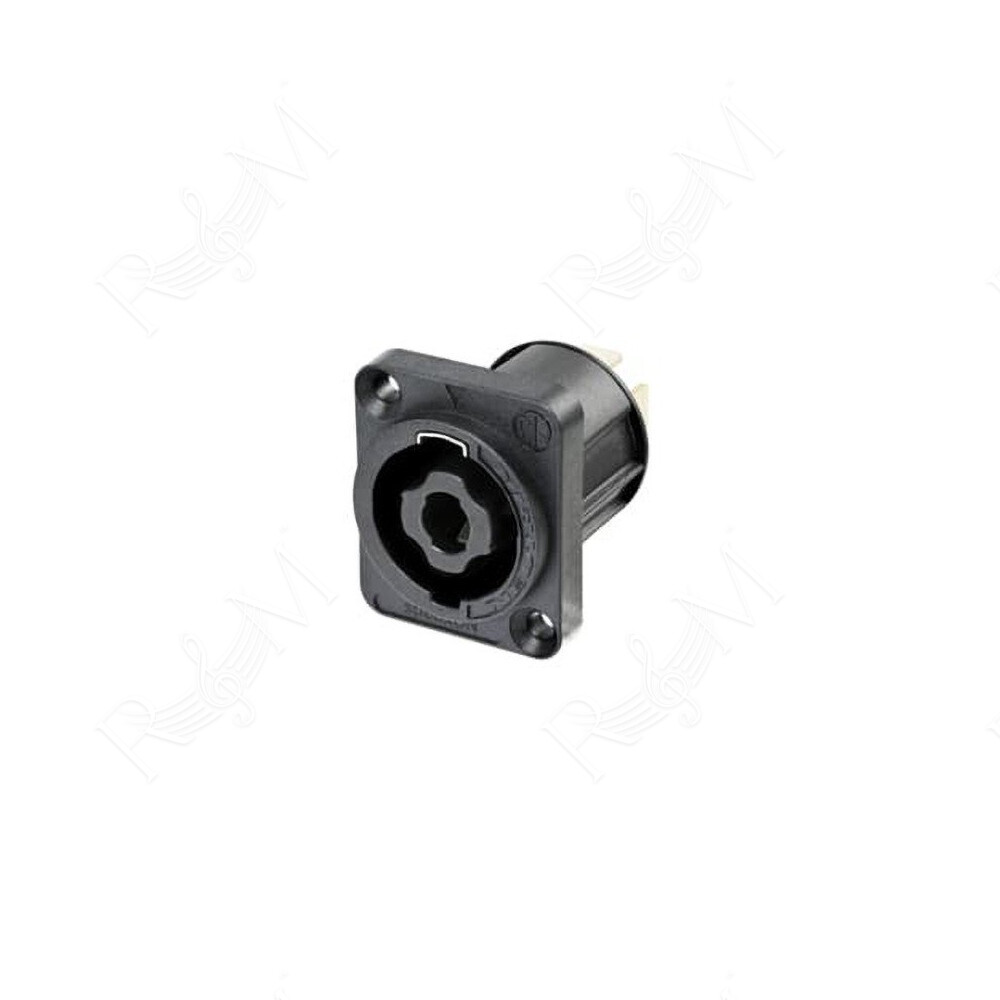

NL4MPXX

Connettore SpeakON da pannello, flangia nera d-size, fori passanti svasati. Connettore standard per il collegamento tra altoparlanti e amplificatori. Dotato di un esclusivo sistema di bloccaggio in metallo, che stabilisce il contatto elettrico a serraggio avvenuto. Le prese speakON sono robuste, versatili e facili da terminare.

Specifiche Tecniche:

• IEC 61984 certified > IEC 62368-1 compliant
• Glass reinforced V-0 materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal insert in locking area
• Airtight design - optimized for speaker applications

Electrical

• Contact resistance ≤ 2 mohm
• Dielectric strength 2.8 kV_AC
• Insulation resistance >0.1 GΩ (after dampheat)
• Rated current per contact 25 A rms continuous (audio rating significantly higher, depending on signal)
• Rated voltage 250 V ac
• Attention speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

• Lifetime > 5000 mating cycles
• Termination 3/16" flat tabs (e.g. NLFASTON)
• Locking device Quick Lock
• Chassis shape D
• Layout standard hole position, thru holes

Material

• Contact plating Ag
• Locking element Stainless Steel
• Shell Polyamide (PA 6.6)
• Contacts Copper Alloy

Environmental

• Flammability UL94 V-0
• Temperature range -30 °C to +80 °C
