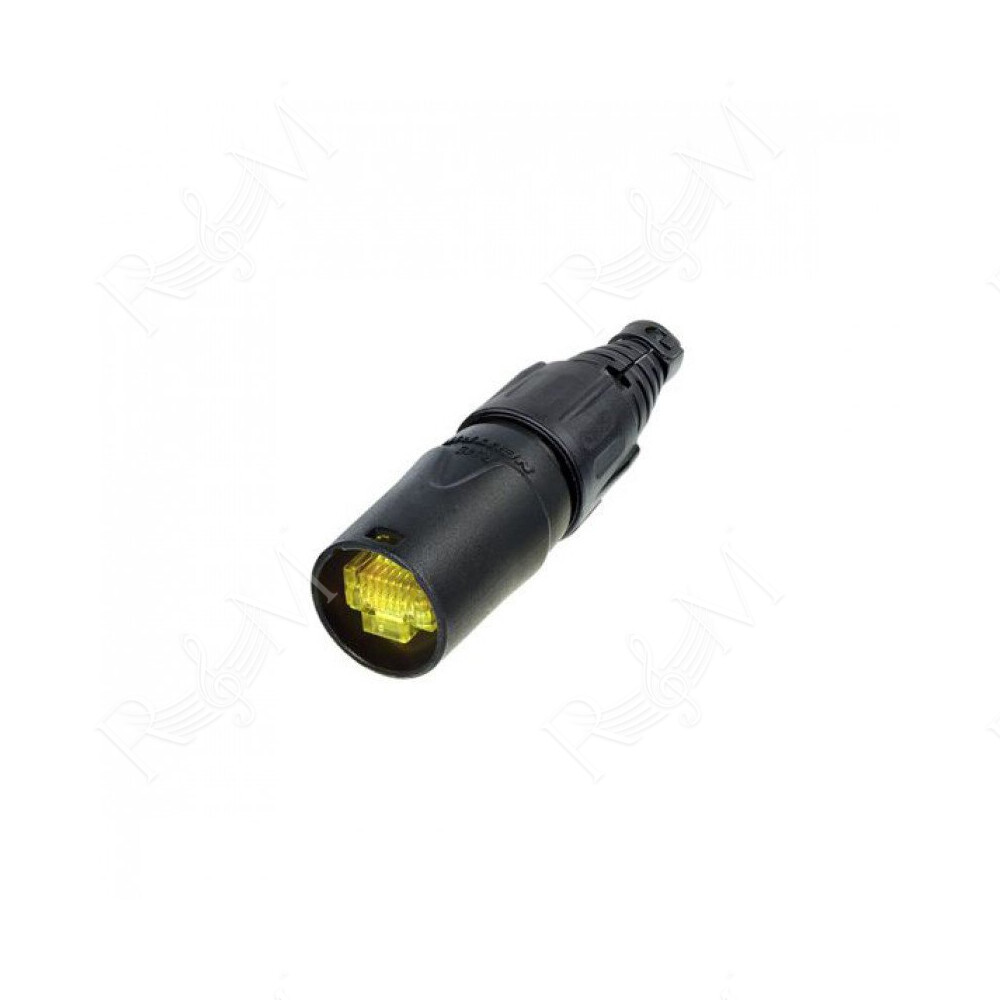

NE8MX

Corpo connettore EtherCON in robusto metallo con serracavo tipo mandrino e passacavo. Accoglie infatti cavi con connettore RJ45 (non incluso nella fornitura) con diametro fino a 8mm. Consente di trasformare un connettore standard RJ45 in una soluzione estremamente robusta e bloccabile. Attenzione! Non è compatibile con connettori CAT6 da pannello NE8FDY-C6.

Specifiche Tecniche:

Features & Benefits

• The RJ45 system for harsh and demanding environment
• Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
• Rugged diecast shell and unique chuck type strain relief
• Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
• Allows assembly of pre-assembled conventional RJ45 cables
• Accessories include color coded boots in 9 standard colors

Product

• Title NE8MX
• Gender male
• IMPORTANT Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Mechanical

• Cable O.D. 4.5 mm - 8 mm
• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles

Material

• Boot Polyamide (PA 6)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel
• Strain relief Polyacetal (POM)

Environmental

• Temperature range -30 °C to +80 °C
