Specifiche Tecniche:
Features & Benefits

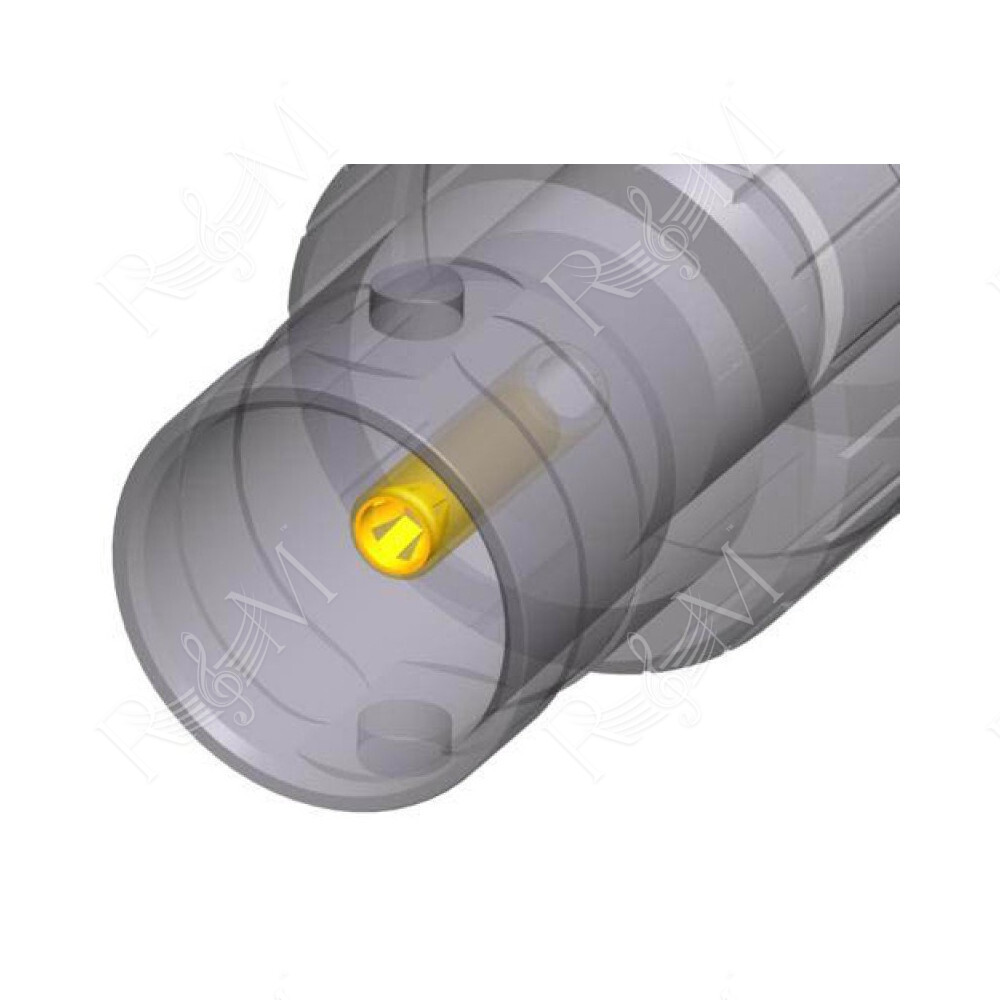

- Gold plated cage type center contact
- True 75 ohm design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing - provides flush mounting and protection from demage
- Color coding possible
Product

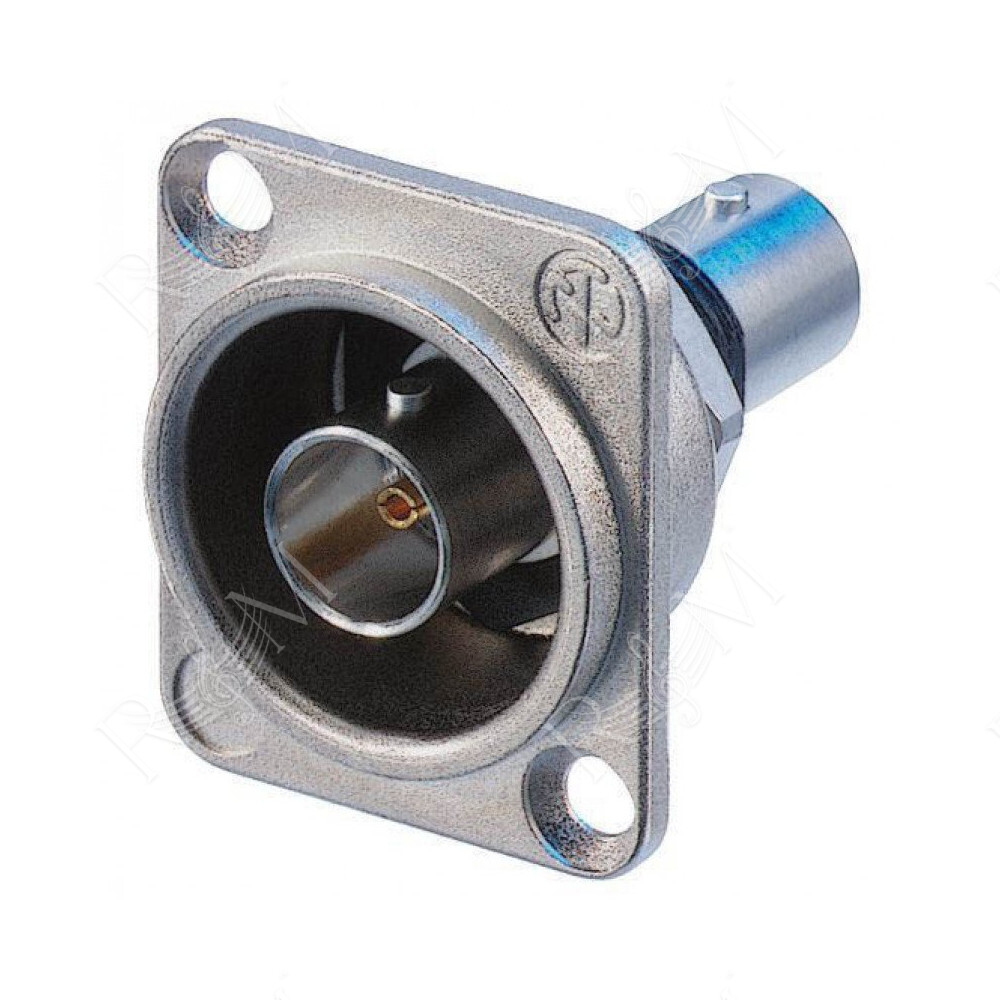

- Title NBB75DFI
- Connection Type BNC 75 ohm
- Gender female
Electrical
- Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
- Contact resistance ≤ 3 m ohm (inner)
- Contact resistance ≤ 2 m ohm (outer)
- Dielectric strength 1,5 kVDC
- Impedance 75 ohm
- Insulation resistance > 5 Gohm
- Rated voltage <50 V
- VSWR ≤1.03/>37 dB up to 1 GHz
- ≤1.05/>32 dB up to 2 GHz
- ≤1.08/>28 dB up to 3 GHz
Mechanical
- Insertion force < 25 N
- Lifetime > 1000 mating cycles
- Wiresize
- Locking device Bayonett
- Mounting direction Front mounting
- Chassis shape D
Material
- Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
- Insert PTFE
- Shell Polyacetal (POM) (Insulation Sheell)
- Shell plating Optalloy®
- D-Shape housing Zinc diecast (ZnAl4Cu1) gal Ni plating
Environmental
- Temperature range -30 °C to +85 °C
