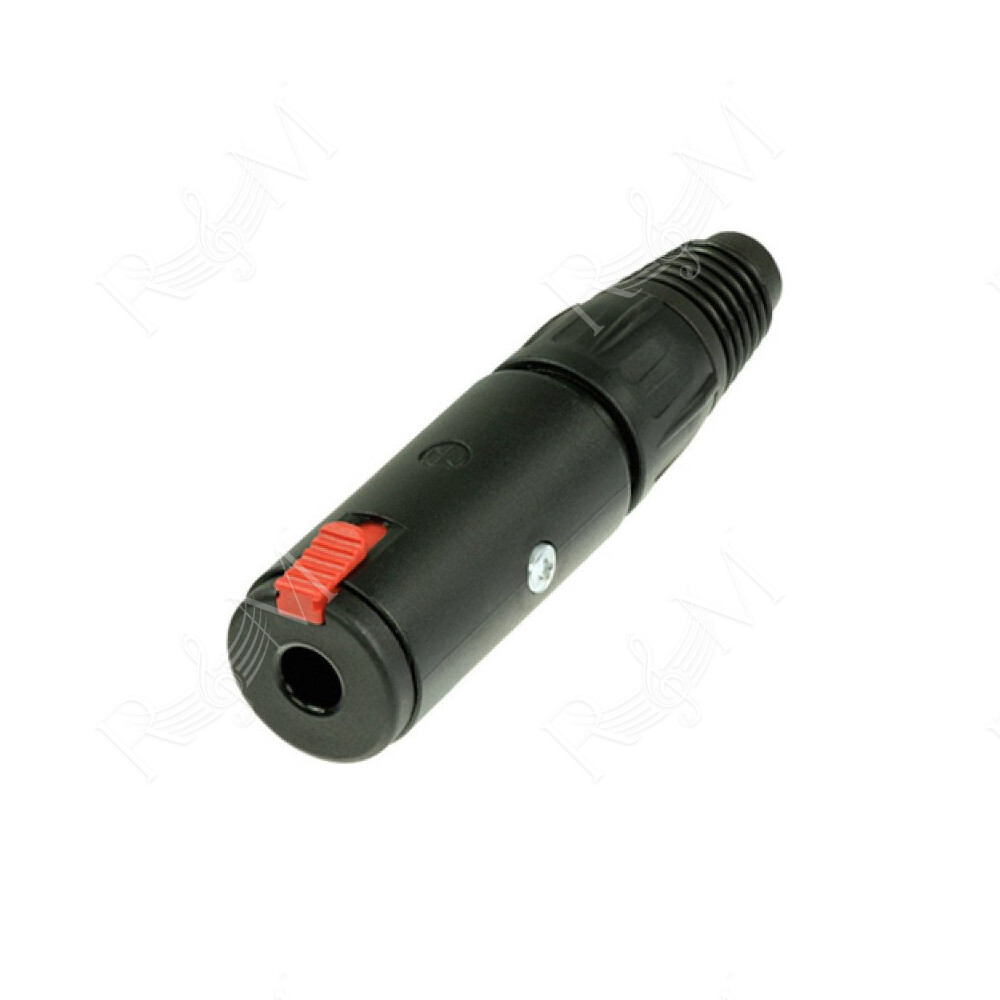

NJ3FC6-BAG

Connettore Jack stereo femmina 6,3 mm volante. Robusto corpo in metallo colore nero, contatti in argento, passacavo per cavi con diametro fino a 8 mm e blocco automatico di sicurezza. Fornisce connessioni stabili e sicure sia per connettori mono che stereo. Il rilascio avviene solo premendo l'apposita levetta. Disponibili come opzioni boccole di identificazioni colorate.

Specifiche Tecniche:

Features & Benefits

• Securely locking cable jack
• Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
• Metal shell makes it extremely robust and reliable
• Neutrik cable retention and boot as on XLR connectors
• Solder terminals
• Colored boots available in 10 colors for color coding and marking

Product

• Title NJ3FC6-BAG
• Connection Type Jack
• Gender female

Electrical

• Contact resistance < 6 m ohm (initial)
• Dielectric strength 1 kV_DC
• Insulation resistance ≥ 1 Gohm @ 500 V dc
• Rated current per contact 10 A

Mechanical

• Cable O.D. 3.5 - 8.0 mm
• Insertion force < 30 N
• Withdrawal force < 20 N
• Lifetime > 10000 mating cycles
• Locking force > 80 N
• Wiresize 1 mm²
• Wiresize 18 AWG
• Wiring Solder contacts
• Locking device Latch lock

Material

• Boot Polyurethan
• Contact plating 2 µm Ag
• Contacts Brass (CuZn37) (Ground)
• Insert Polyamide (PA 6.6 30 % GR)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Black
• Strain relief Polyacetal (POM)

Environmental

• Standard compliance EIA RS 453, IEC 60603-11
• Solderability Complies with IEC 68-2-20
• Temperature range -25 °C to +70 °C
