Specifiche Tecniche:

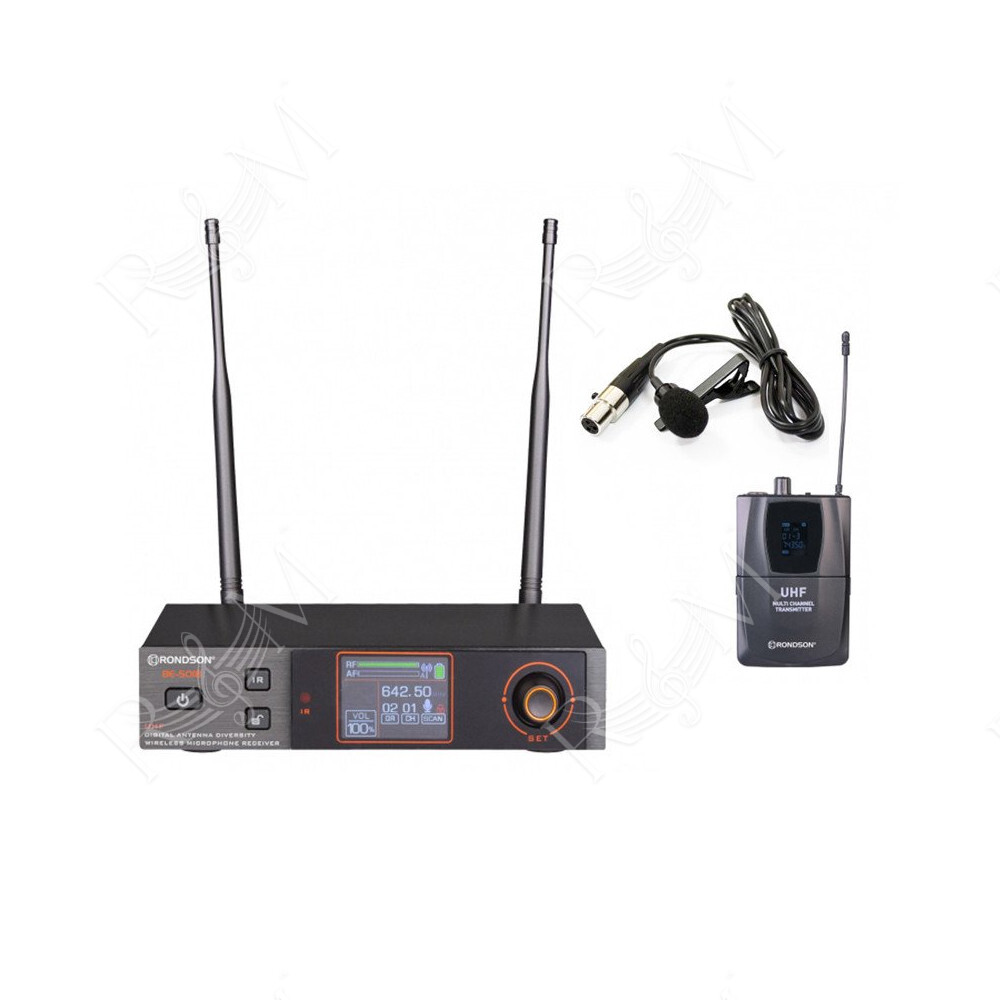

Technical characteristics
- Reception method: True Diversity
- System: synthesized PLL
- Frequency stability: ±0.005
- Image interfere rate: > 80 dB
- S/N ratio: > 105 dB at 1 kHz
- Sensitivity: - 107 dBm
- Harmonic distortion: < 0.5%
- Frequency response: 15 – 20,000 Hz
- Output impedance: 600 ohm
- Audio output level: -12 dB
- Display: LCD
- Audio output socket: XLR symmetrical
- Antenna sockets: 2 x BNC
- Power supply: 12-18 VDC 500 mA -Adapter 230 V
- Dimensions (W x D x H): 210 x 120 x 38 mm (1/2 rack 19")
- Weight: 1 kg

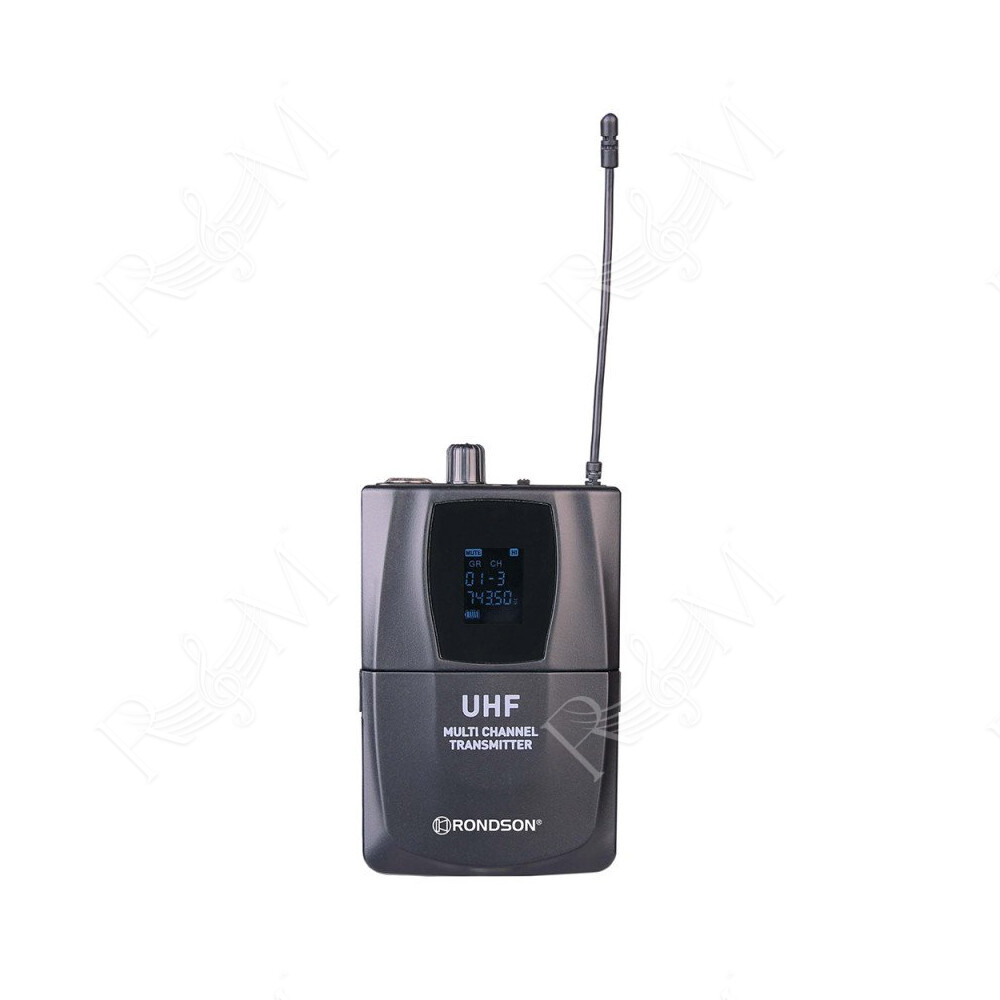

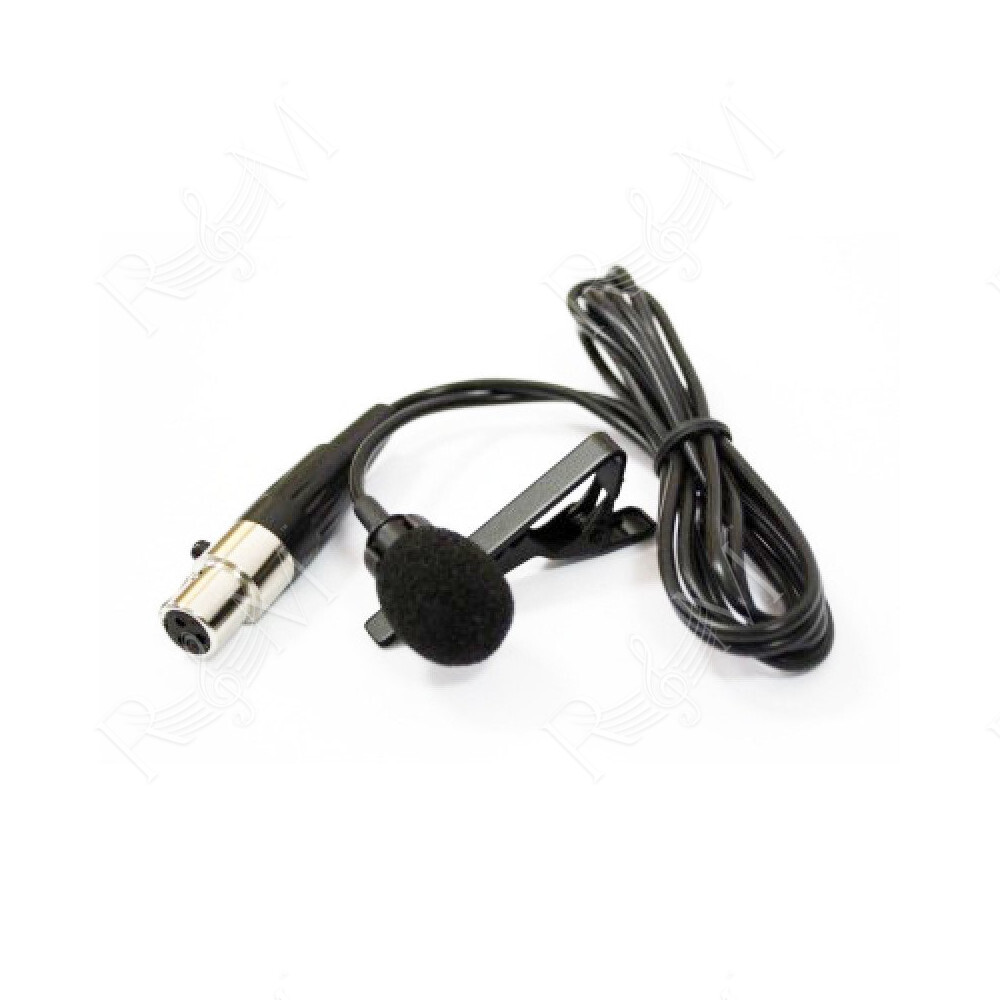

- Bodypack + lavalier microphone: PT-10/CM-506
- Batteries: 2 x AA / 1.5 V (not delivered)
