Specifiche Tecniche:
Technical characteristics
- Dual wireless handheld microphone system
- 2 fixed frequency of 663/676.6 MHz
- PLL synthesizer
- Easy-to-read LCD displays
- 50 m open areas range
- Modulation type: FM
- Frequency deviation: ±22 kHz
- Frequency response: 50 - 15,000 Hz
- Frequency stability: ±10 ppm
- Interference rate: > 50 dB
- S/N ratio: > 90 dB
- Sensitivity: - 90 dBuV
- Distortion: < 0.5%
- Output impedance: 600 ohm
- Audio output level: -400 mV (balanced / unbalanced)
- Output connectors: 2 x XLR-3M, 1 x jack 6.3 mm
- Antenna connectors: 2 x BNC

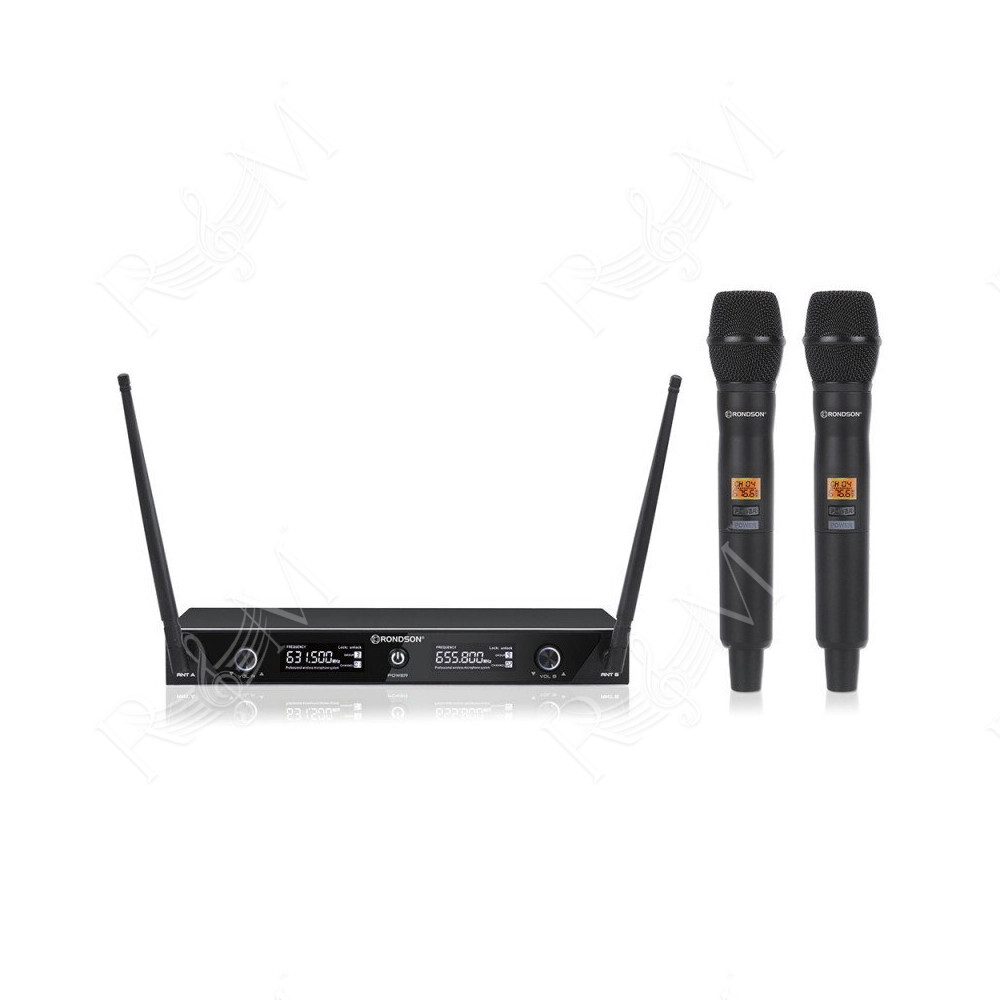

- BE-1020: dual receiver, dimensions 350 x 175 x 46 mm (no rackable), weight: 2.75 kg, power: 110 - 240 VDC 12 V 700 mA, consumption: < 5 W

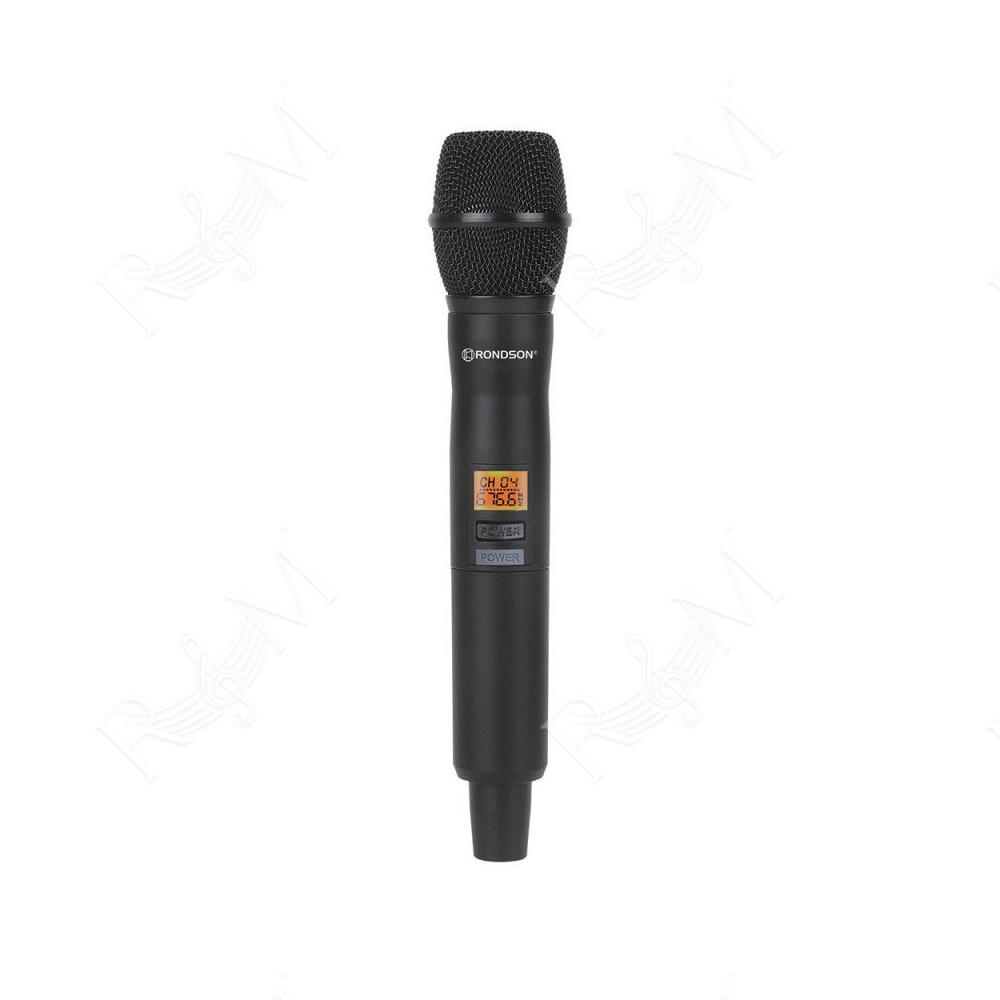

- BE-1020MIC: handheld microphone transmitter, dimensions 240 x 50 x 33 mm, RF power: 10 mW, power supply: 2 x 1.5 V AA
