Specifiche Tecniche:

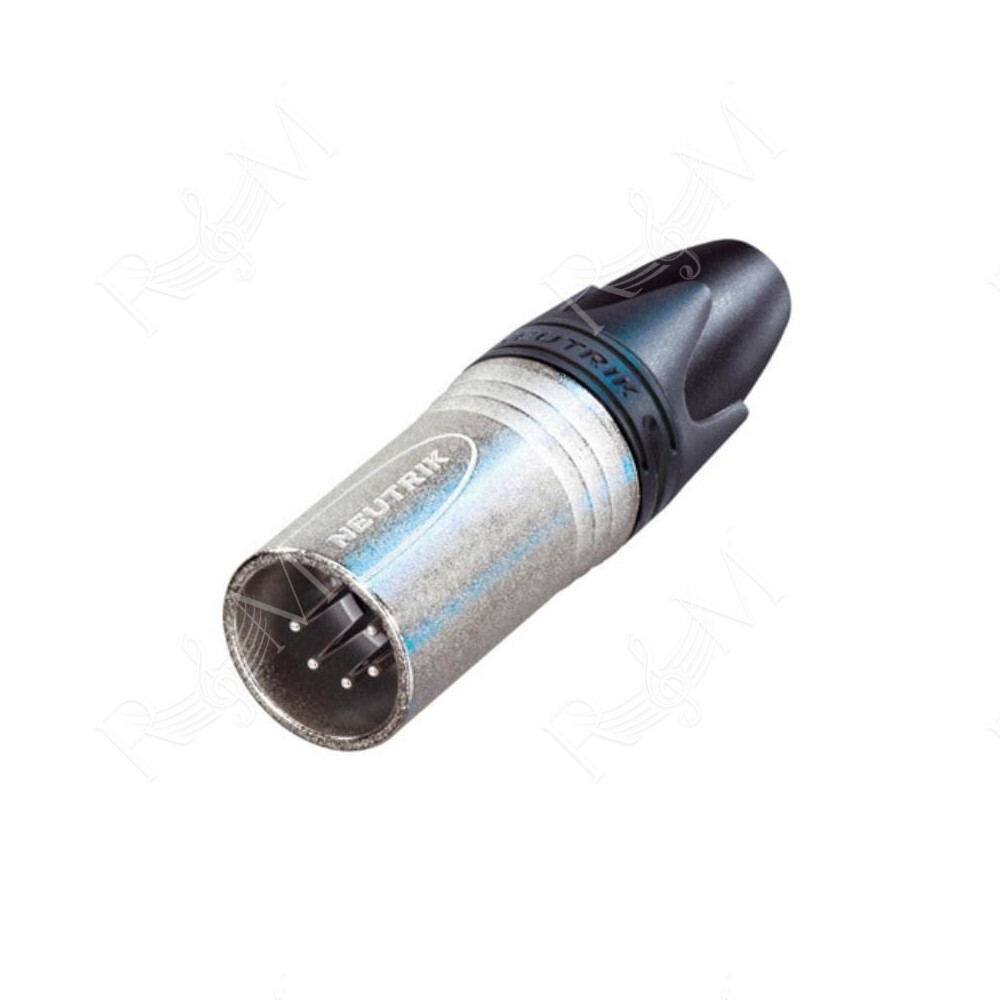

- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
Electrical
- Capacitance between contacts ≤ 7 pF
- Contact resistance ≤ 3 mohm
- Dielectric strength 1,5 kVDC
- Insulation resistance > 10 Gohm (initial)
- Rated current per contact 7,5 A
- Rated voltage < 50 V
Mechanical
- Cable O.D. 3.5 - 8.0 mm
- Insertion force ≤ 20 N
- Withdrawal force ≤ 20 N
- Lifetime > 1000 mating cycles
- Wiresize max. 1.0 mm2
- Wiresize max. 18 AWG
- Wiring Solder contacts
- Locking device Latch lock
Material
- Boot Polyurethan
- Contact plating 2 µm Ag over 2 µm Ni
- Contacts Brass (CuZn39Pb3)
- Insert Polyamide (PA 66)
- Locking element Zinc diecast (ZnAl4Cu1)
- Shell Zinc diecast (ZnAl4Cu1)
- Shell plating Nickel
- Strain relief Polyacetal (POM)
Environmental
- Flammability UL 94 V-0
- Standard compliance IEC 61076-2-103
- Protection class IP 40
- Solderability Complies with IEC 68-2-20
- Temperature range -30 °C to +80 °C
