Specifiche Tecniche:
- Extra slim right-angle connector

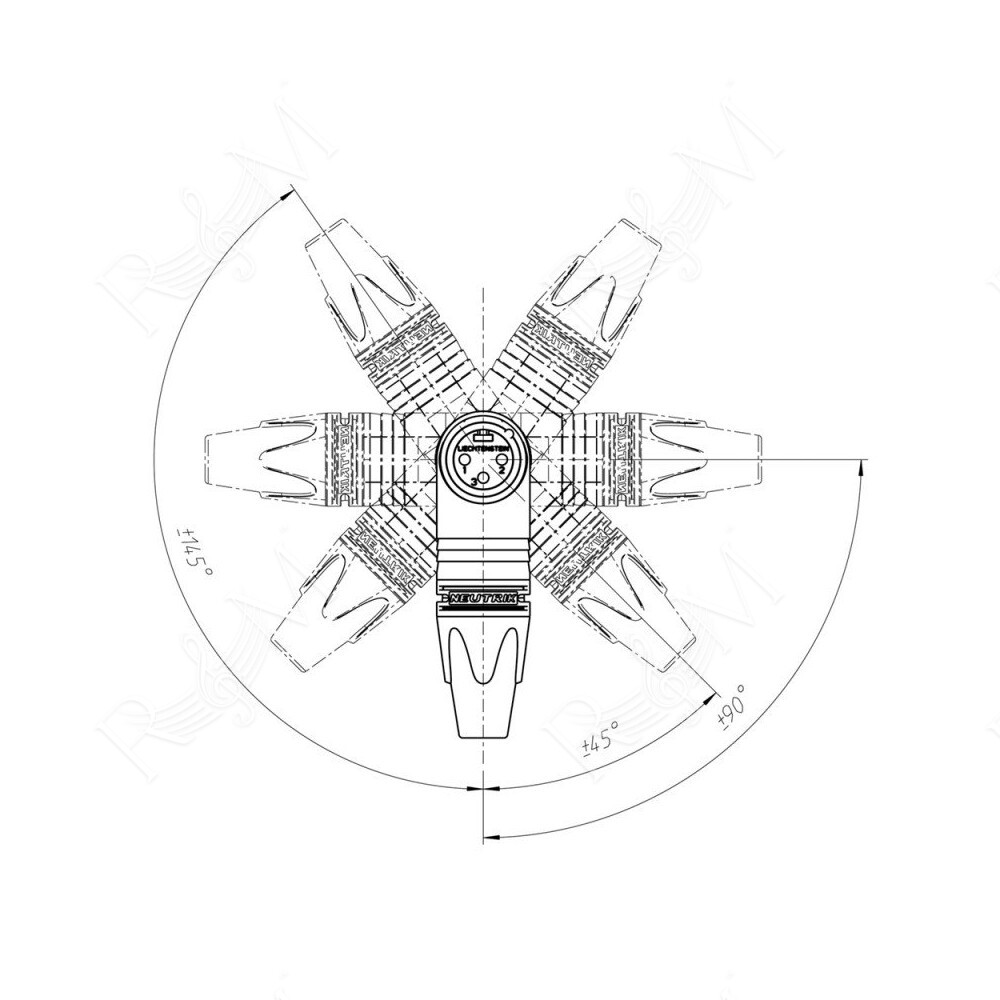

- 5 selectable cable outlet positions
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product

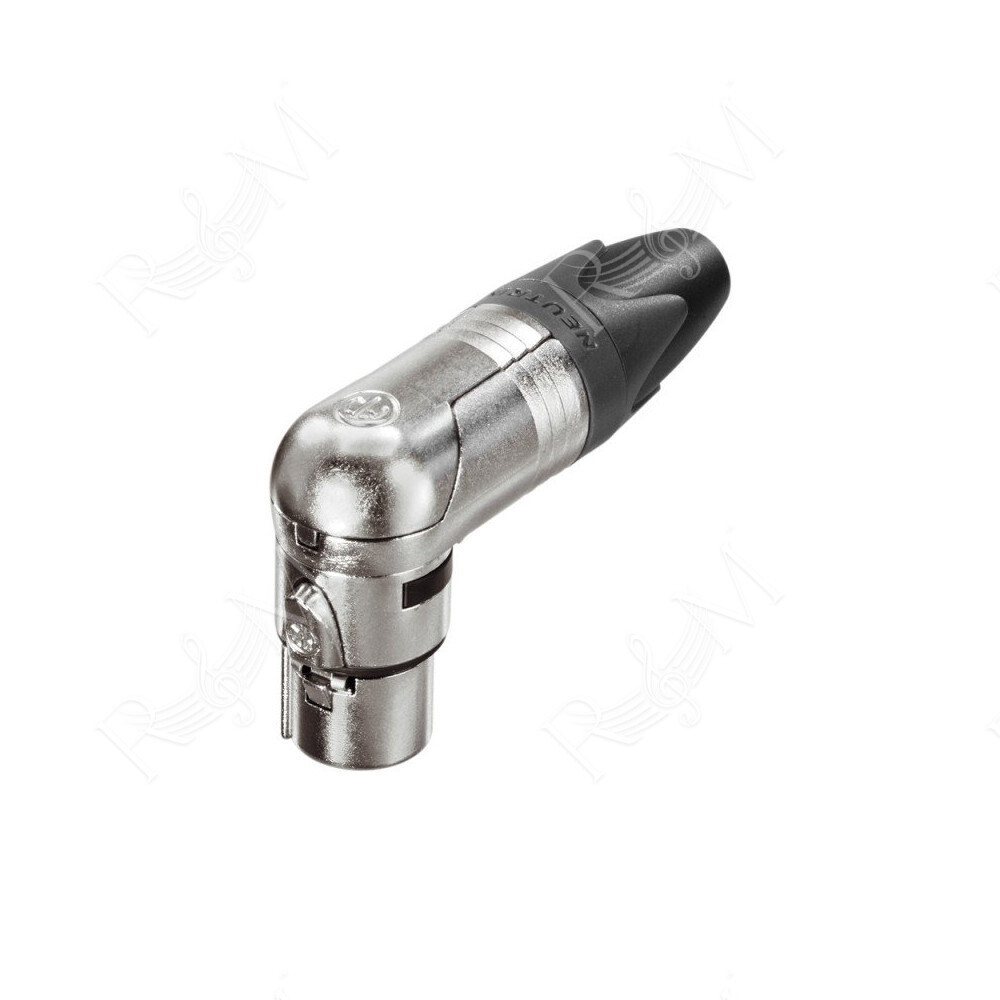

- Title NC3FRX
- Connection Type XLR
- Gender female
Electrical
- Capacitance between contacts ≤ 4 pF
- Contact resistance ≤ 3 mohm
- Dielectric strength 1,5 kVDC
- Insulation resistance > 2 Gohm (initial)
- Rated current per contact 16 A
- Rated voltage < 50 V
Mechanical
- Cable O.D. 3.5 - 8.0 mm
- Insertion force ≤ 20 N
- Withdrawal force ≤ 20 N
- Lifetime > 1000 mating cycles
- Wiresize max. 2.5 mm2
- Wiresize max. 14 AWG
- Wiring Solder contacts
Material
- Boot Polyurethan
- Contact plating 2 µm Ag
- Contacts Bronze (CuSn8)
- Insert Polyamide (PA 6.6 30 % GR)
- Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell Zinc diecast (ZnAl4Cu1)
- Shell plating Nickel
- Strain relief Polyacetal (POM)
Environmental
- Flammability UL 94 HB
- Standard compliance IEC 61076-2-103
- Protection class IP 40
- Solderability Complies with IEC 68-2-20
- Temperature range -30 °C to +80 °C
