Specifiche Tecniche:
- Dust and water ingress sealing:
- IP67 in combination with HD cable connector NC3MXX-HD*
- IP67 in combination with HD chassis connector NC3MPR-HD
- Rubber sealing jacket protects against water ingress and mechanical shock
- Gold contacts
Product

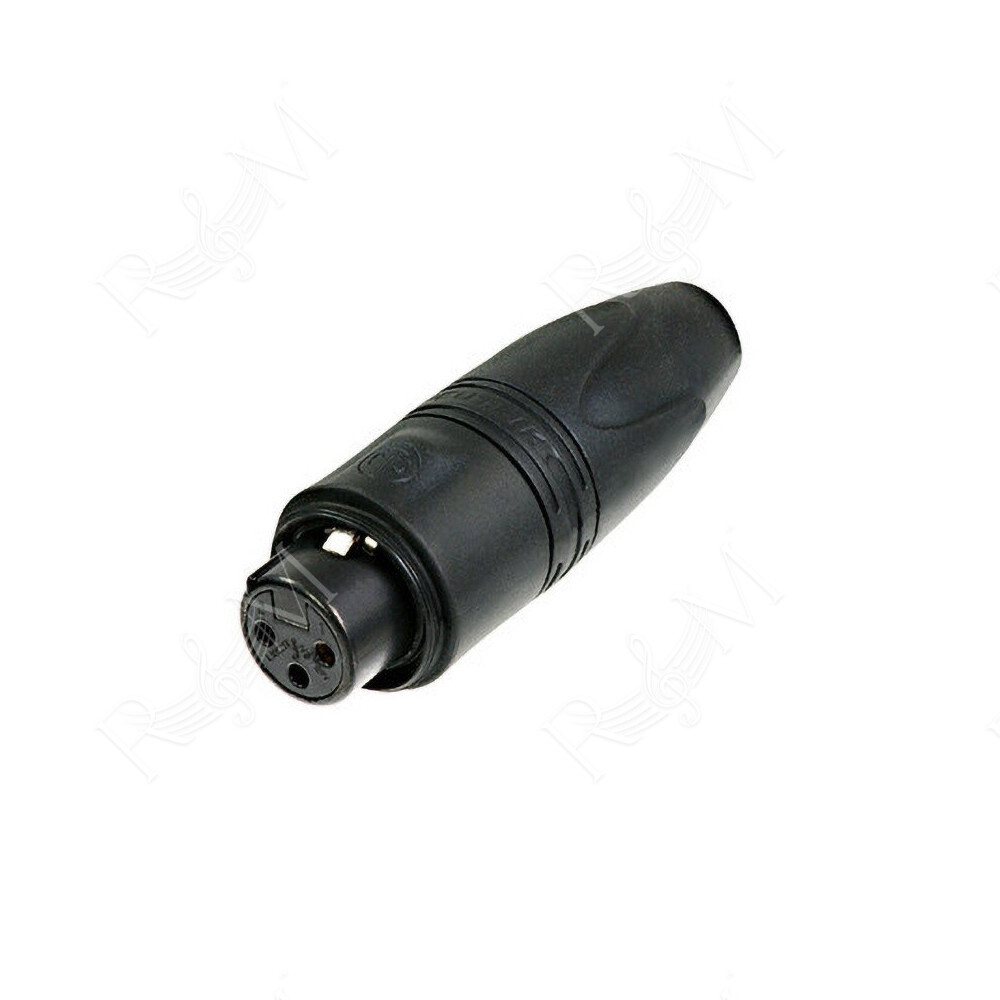

- Title NC3FXX-HD-B-D
- Connection Type XLR
- Gender female
Electrical
- Capacitance between contacts ≤ 4 pF
- Contact resistance ≤ 3 mohm
- Dielectric strength 1,5 kVDC
- Insulation resistance > 10 Gohm (initial), > 1 GΩ (after damp heat test)
- Rated current per contact 16 A
- Rated voltage < 50 V
Mechanical
- Cable O.D. 6.0 - 8.0 mm
- Insertion force ≤ 20 N
- Withdrawal force ≤ 20 N
- Lifetime > 1000 mating cycles
- Wiresize max. 2.5 mm2
- Wiresize max. 14 AWG
- Wiring Solder contacts
- Locking device Latch lock
Material
- Boot Polyurethan
- Contact plating 0.2 µm Au hard alloy over 2 µm Ni
- Contacts Bronze (CuSn8)
- Insert Polyamide (PA66)
- Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell Zinc diecast (ZnAl4Cu1)
- Shell plating Nickel
- Strain relief Polyacetal (POM)
- Sealing jacket EPDM
Environmental
- Flammability UL 94 V-0
- Standard compliance IEC 61076-2-103
- Solderability Complies with IEC 68-2-20
- Temperature range -30 °C to +80 °C
