Specifiche Tecniche:
Features & Benefits
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
Product

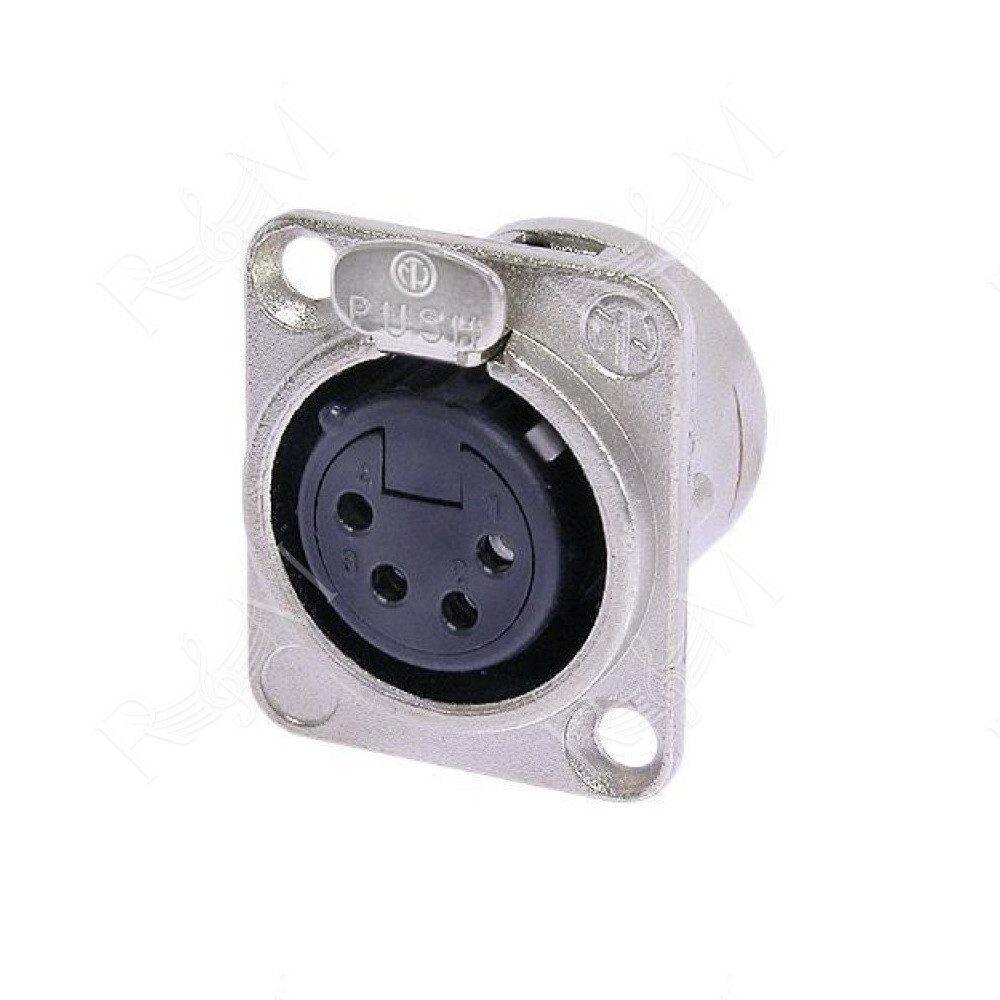

- Title NC4FD-L-1
- Connection Type XLR
- Gender female
Electrical
- Capacitance between contacts ≤ 7 pF
- Contact resistance ≤ 5 mohm
- Dielectric strength 1,5 kVDC
- Insulation resistance > 10 Gohm (initial)
- Rated current per contact 10 A
- Rated voltage < 50 V
Mechanical
- Insertion force ≤ 20 N
- Withdrawal force ≤ 20 N
- Lifetime > 1000 mating cycles
- Wiresize max. 1.5 mm2
- Wiresize max. 16 AWG
- Wiring Solder contacts
- Locking device Latch lock
- Chassis shape D
Material
- Contact plating 2 µm Ag over 2 µm Ni
- Contacts Brass (CuZn39Pb3)
- Insert Polyamide (PA 6.6 30 % GR)
- Locking element Steel Ck67
- Shell Zinc diecast (ZnAl4Cu1)
- Shell plating Nickel
Environmental
- Approvals UL
- Flammability UL 94 HB
- Standard compliance IEC 61076-2-103
- Protection class IP 40
- Solderability Complies with IEC 68-2-20
- Temperature range -30 °C to +80 °C
